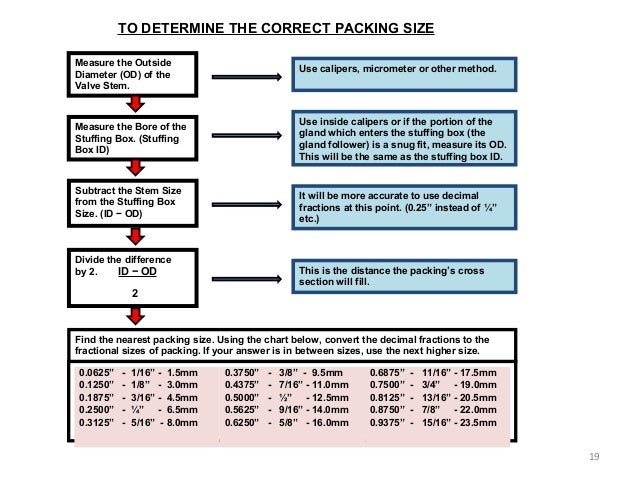

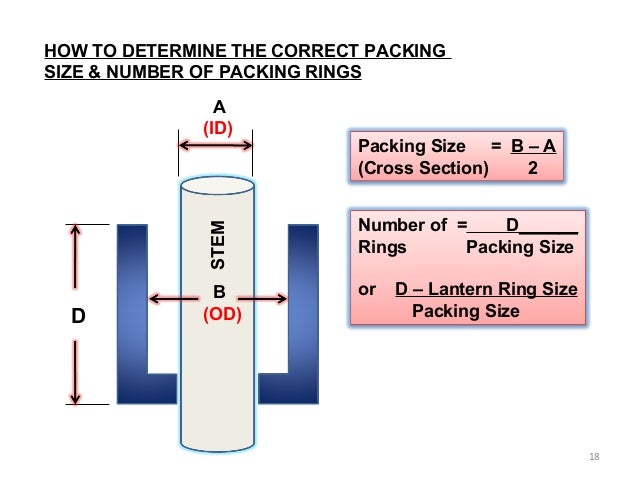

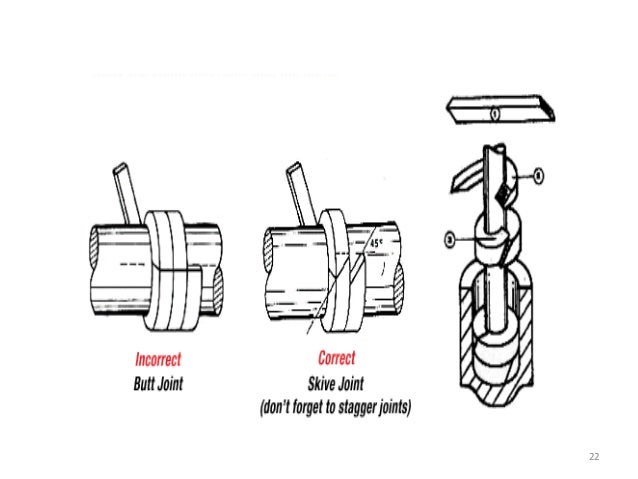

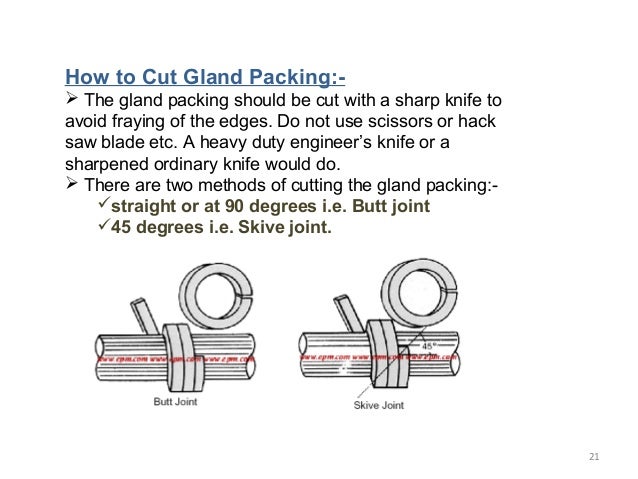

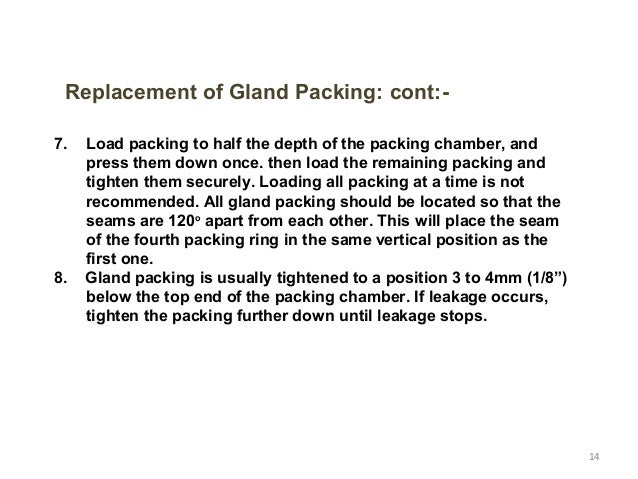

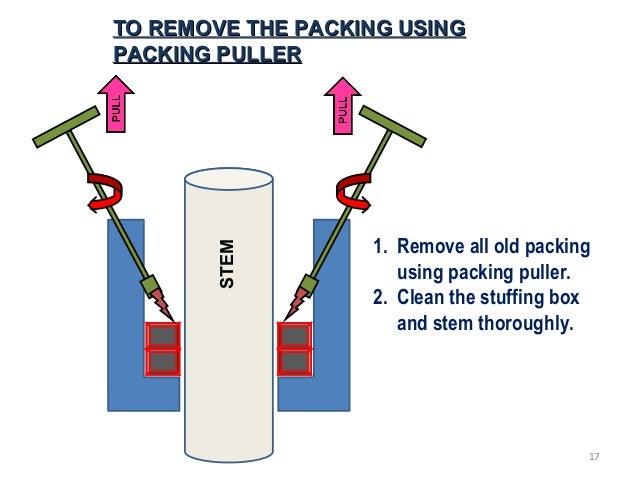

Valve Maintenance Packing Replacement

Knifegate Valve Maintenance And Repair

Valve Trim And Parts Including Api Trim Charts

Bell Gossett V Packing Gland Nut

Valve Parts Body Bonnet Trim Projectmaterials

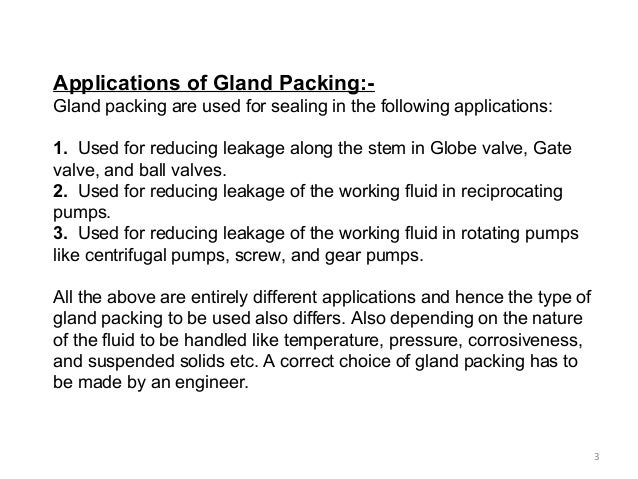

To retain the fluid in the pipeline, a gland is provided which is supplied with some type of packing to resist leakage.

Gate valve packing gland. Danfoss Thermostatic Radiator Valves at discount prices can help you save money on your heating bill. Wiper/Anti Extrusion Ring minimizes the gap between the body and the gate;. 247 Davidson Road, Wadeville, Germiston, Gauteng, 1428 Switchboard:.

GATE VALVES- BOLTED BONNET- FULL PORT Design construction:. Type Nominal d L D C N h t H D1;. Utilising materials that provide outstanding abrasion and corrosion resistance, the Isogate® WS series wafer style slurry knife gate valve combines a low maintenance design with a wide range of available materials, making the valve suitable for a variety of applications.

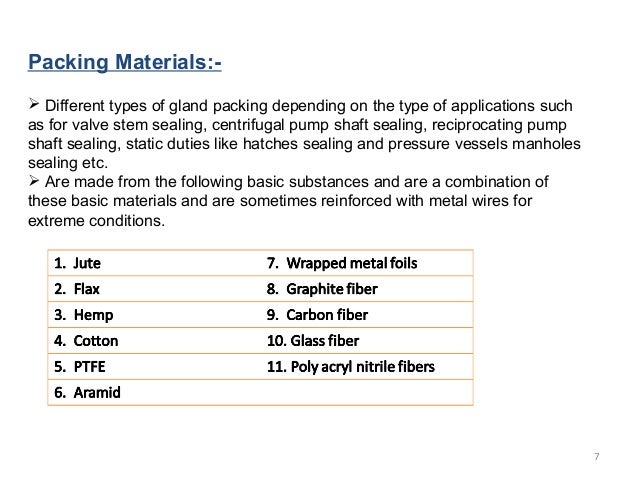

Packing, available in different materials, like PTFE, elastomers, fibrous material, etc. Unrestricted flow path with minimal pressure drop achieved through full port valve design;. Optional energized quad seal packing for enhanced gland sealing.

Check packing adjustment to obtain slight leak. Based on our experiences, high quality products and extensive training provided by our affiliated manufactures that keep us well-informed for the latest technology and placing us one-step forward than others. Press start button to.

Body, bonnet, and trim. Danfoss valves are the leader in thermostatic radiator valves. The back seat provides a seal between the stem and bonnet and prevents system pressure from building against the valve packing once the valve is fully open.

FlameStop offers a wide range of Fire Hose Reels, with lengths of 36m or 50m available. Back seats are often used in gate and globe valves. Stop the pump by putting selector switch to “Off” Position and allow jockey pump to pressurize the system again;.

This is the maximum Basic English combined wordlist. The valve design should be such that the stem seal retaining fasteners, e.g., packing gland fasteners, alone do not retain the stem. The design should ensure that the stem should not be capable of ejection from the valve while the valve is under pressure by the removal of the stem seal retainer, e.g., gland, alone.

Flow Test for Electric Fire Pump. +27 (0)11 842 00 Email:. A gate valve consists of a valve body, seat and disc, a spindle, gland, and a wheel for operating the valve.

ARI ARMATUREN, ALPHA, PEGLER, WALWORTH. Open gate valve for flow meter discharge valve and keep butterfly valve after flow meter fully close;. Gate valves consist of three major components:.

The body is generally connected to the piping by means of flanged, screwed, or welded connections. A gate valve is generally used to completely shut off fluid flow or, in the fully open position, provide full flow in a pipeline. A backseat is seating inside the bonnet.

It is what the advanced student will know when moving from Basic English to the standard English language. เลือก globe valve ที่เป็น bellow seal หรือ gland packing ดี. All options are easy to operate and maintain and meet or exceed requirements of Australian Standard AS1221.

Deflection resistant gate design ensures consistent alignment for industry leading durability. Thus it is used either in the fully closed or fully open positions. ゲートバルブ (gate valve) 弁体が流路を仕切って開閉する構造のもの。仕切弁とも呼ばれる。バルブの弁箱に収納された円盤状の弁体が、流路に対し直角に動作して、流路の開閉を行う。流体の閉じる動作は、弁体を弁座より極僅か浮かせて、クサビ効果を利用して行う構造となっている。.

Gate Valve An Overview Sciencedirect Topics

Valve Maintenance Packing Replacement

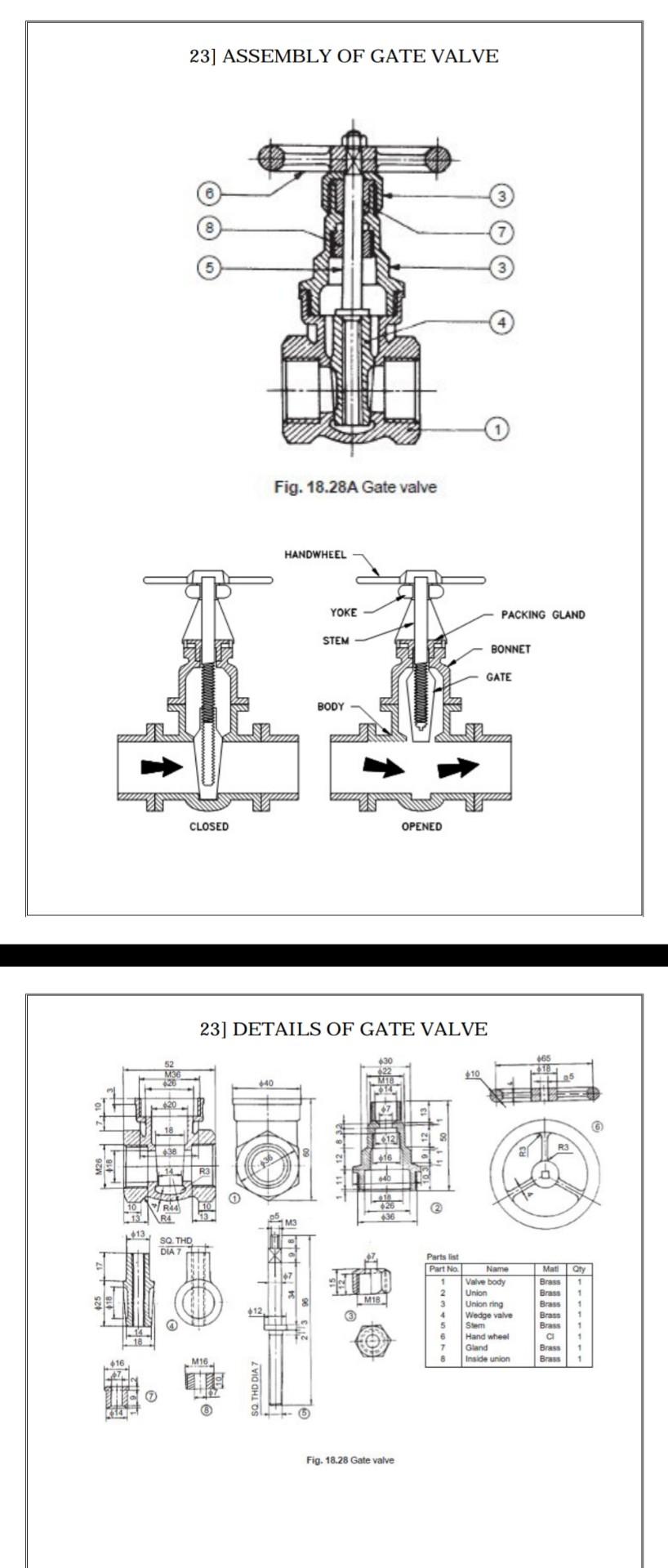

Figure 4 2 Gate Valve Repair
